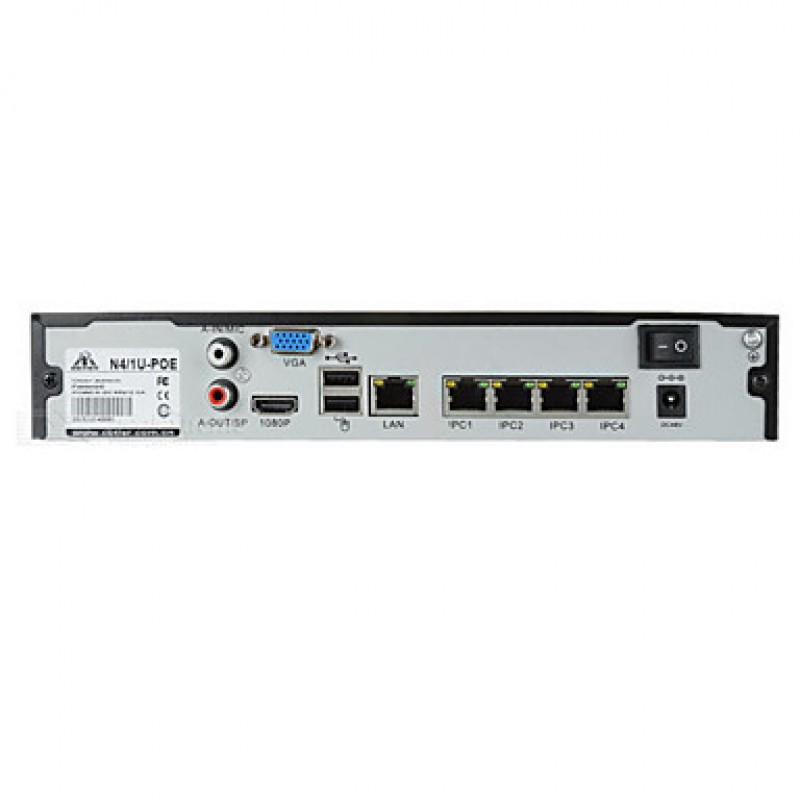

4CH NVR Kits 720P ONVIF P2P IP Camera N4B/Kit-POE
- $241.99
- Price in reward points:5000
- Product Code:4CH NVR Kits 720P ONVIF P2P IP Camera N4B/Kit-POE
- Availability:In Stock
Tags: NVR Kits
| NVR | |
|---|---|
| Operating system | Embedded LINUX Operating System, |
| Video Compression | H.264, |
| IP video input | 4CH, |
| Video Output | VGA, |
| Audio Input / Output | RCA 4-Channel Input / RCA 1-Channel Output, |
| Recording resolution | 1080P (1920*1080),960H (1280*960),720P (1280*720), |
| Playback Mode | Frame by Frame, |
| Synchronous Playback (Channel) | 4, |
| HDD Interface | 1 SATA (3.5"), |
| Capacity | Up to 4TB, |
| Network interface | 1 RJ45 10M/ 100M self-adaption & 4 independent 10/ 100 Mbps ethernet interfaces, |
| USB interface | 3 USB 2.0 interfaces, |
| Application support | local and remote playback, |
| Motion detection | Yes, |
| Protocol support | DHCP,UPNP,SMTP,DNS/ DDNS,P2P, |
| Smart phone | Android 2.3 up,IOS 5 up, |
| PTZ Control | PTZ, |
| Power Supply | 12V/2A DC, |
| Power Consumption | IR on Max 2000mA, |
| Dimensions (LxWxH) | 18.5*6.7*6.8cm, |
| Language | English, |
| IP Camera Parameters | |
| Video compression | H.264, |
| Lens | 3.6mm, |
| Angle of view | 85°, |
| Maximum IR Distance (FT) | 20m, |
| Minimum Illumination | 0.001 Lux, |
| Image resolution | 720P (1280*720), |
| Frame rate | 25fps Real-time, |
| Record Mode | Manual,Alarm Triggered,Motion Detection,Time Schedule, |
| Snapshot | Manual snapshot, |
| Image setting | Color, |
| Detection area setting | Video recording, |
| Audio | No, |
| Audio intercom | Support two-way audio intercom, |
| Communication interface | POE, |
| Network protocols | P2P,HTTP,DHCP,UPNP,DNS/ DDNS,UDP,TCP/IP, |
| Function | Two-Way Audio,PTZ,Dual stream,Regional mask,WDR,Gain control,Backlight balance,Waterproof,White balance, |
| Alarm action | E-mail alarm, |
| Access protocol | ONVIF Ver.2.0, |
| User management | Multi-user management, account executives can assign permissions, |
| Security | User authentication, |
| Computer operating system | Win7,XP, |
| Weather proof | IP 66, |
| Smart phone | Android 2.3 up,IOS 5 up, |
| Operating Temperature | 14°F~122°F / -10°C ~50°C, |
| Power | 12V DC, |
| Dimensions (LxWxH) | 25.5*21.5*4.4cm, |
| Gross Weight | 1.1KG, |
| Material | Plastic Shell, |
| General | |
| Brand | Cotier, |
| OSD Languages | English,Chinese,Spanish,French, |

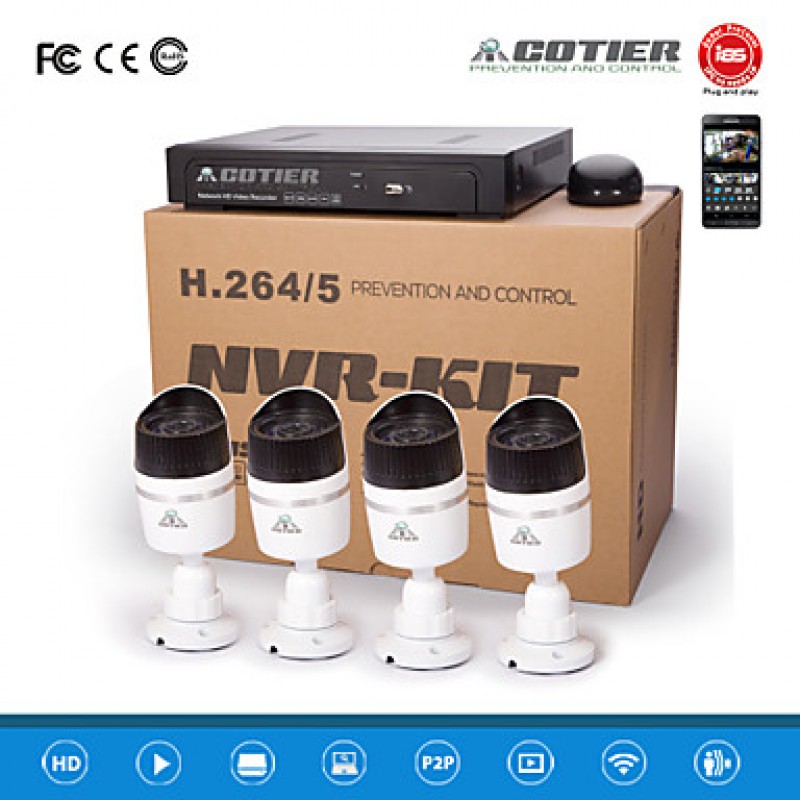

| What's in the box | 5 x Power Supply,1 x User Manual - English,1 x Software CD,1 x Mouse,1 x NVR,4 x Bullet IP Camera, |
