| Image Sensor |
|---|
| Shape | Box, |
|---|
| Sensor | CMOS, |
|---|
| Sensor Size | 1/4 Inch Color CMOS Sensor, |
|---|
| Effective Pixels | 0.3 MP, |
|---|
| Lens (mm) | 38, |
|---|
| Lens | Prime, |
|---|
| Lens + | IR-cut,Day Night, |
|---|
| Minimum Illumination (Lux) | 0.68Lux, |
|---|
| Viewing Angle (°) | 92, |
|---|
| Video Image/Audio Setting |
|---|
| Compression | H.264, |
|---|
| Video Frame Rate (FPS) | 3-30, |
|---|
| Refresh Rate | 60HZ,50HZ, |
|---|
| Video Adjustment | Auto Backlight Compensation,Auto White Balance,Contrast Adjustable,Brightness Adjustable, |
|---|
| Audio Output | Built-in Speaker, |
|---|
| Audio Input | Built-in Mic, |
|---|
| Audio Compression Standard | ADPCM, |
|---|
| Communication&Interface |
|---|
| Connection Mode | Wireless, |
|---|
| Network Interface | Wi-Fi/802.11/b/g, |
|---|
| Supported Protocol | HTTP,DHCP,TCP/IP, |
|---|
| P2P | yes, |
|---|
| Wireless Security | WPA,WEP, |
|---|
| IP Mode | Dynamic IP address, |
|---|
| DDNS (Free) | No, |
|---|
| Alarm Input | 1 On/Off Input, |
|---|
| Alarm Output | 1 Relay Output, |
|---|
| Alarm Action | Local Alarm,Email Photo, |
|---|
| Physical/Environment |
|---|
| Home | Baby Room, |
|---|
| Business | School,Warehouse,Store,Office, |
|---|
| Environment | Indoor, |
|---|
| Power Supply (V) | 5, |
|---|
| Power Consumption (W) | 3, |
|---|
| Operate Temperature (℃) | -5-55, |
|---|
| Storage Temperature (℃) | -5-55, |
|---|
| Humidity (%) RH | -5-55, |
|---|

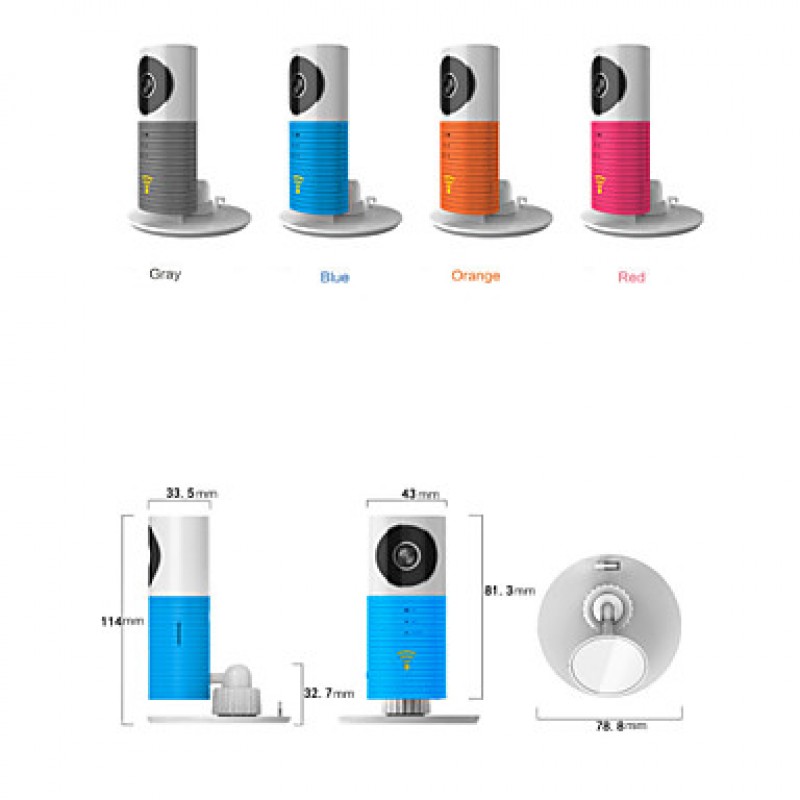

| Size (L x H x W, mm) | 80*80*12, |
|---|
| Weight (g) | 110g, |
|---|
| System Requirment |
|---|
| Supported Mobile Systems | Android,iPhone OS, |
|---|
| Supported Operating Systems | Mac os,Microsoft Windows 7,Microsoft Windows XP, |
|---|
| Supported Browser | Other Standard Browser,Google Chrome,Firefox,IE, |
|---|
| Client Software | No, |
|---|
| Additional Features |
|---|
| IR Distance | 10-15M, |
|---|
| Languages | Italian,Traditional Chinese,Simplified Chinese,Russian,Spanish,English, |
|---|
| Features | Dual Stream,Motion Detection,Day Night,Plug and play,Wi-Fi Protected Setup,IR-cut,Remote Access, |
|---|
| HDD Recording Function | Yes, |
|---|
| Two-way Radio | Yes, |
|---|
| Voice call | Two-Way Audio, |
|---|

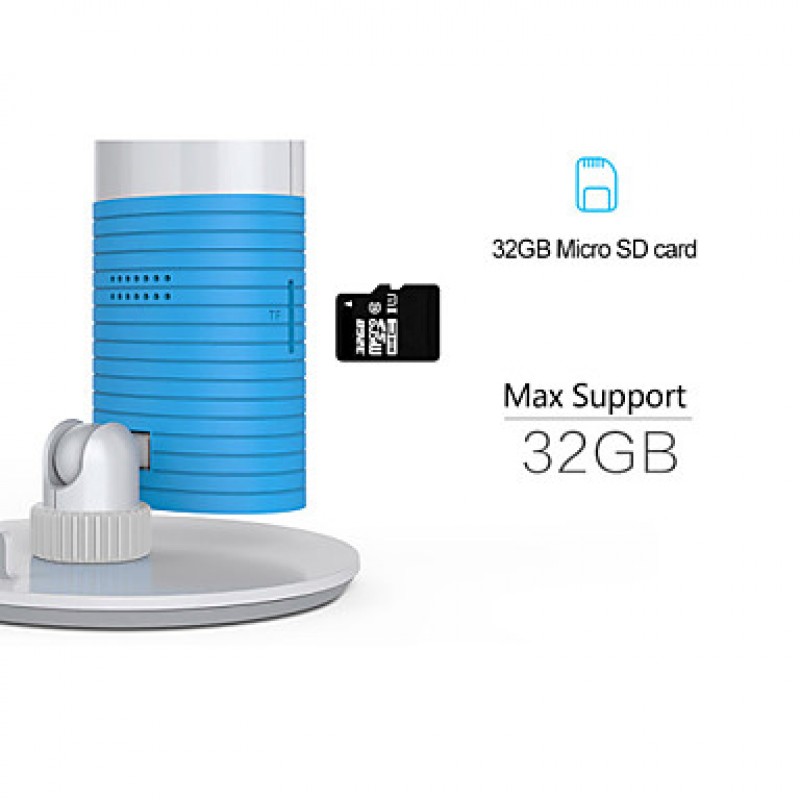

| Storage | TF Card, |
|---|
| Maximum SD Card Support (GB) | 32, |
|---|
| Other Function | Dual Stream, |
|---|
| Update Firmware | Yes, |
|---|
| Brand | Besteye, |
|---|
| General |
|---|
| What's in the box | Screew,IP camera,Bracket, |
|---|
