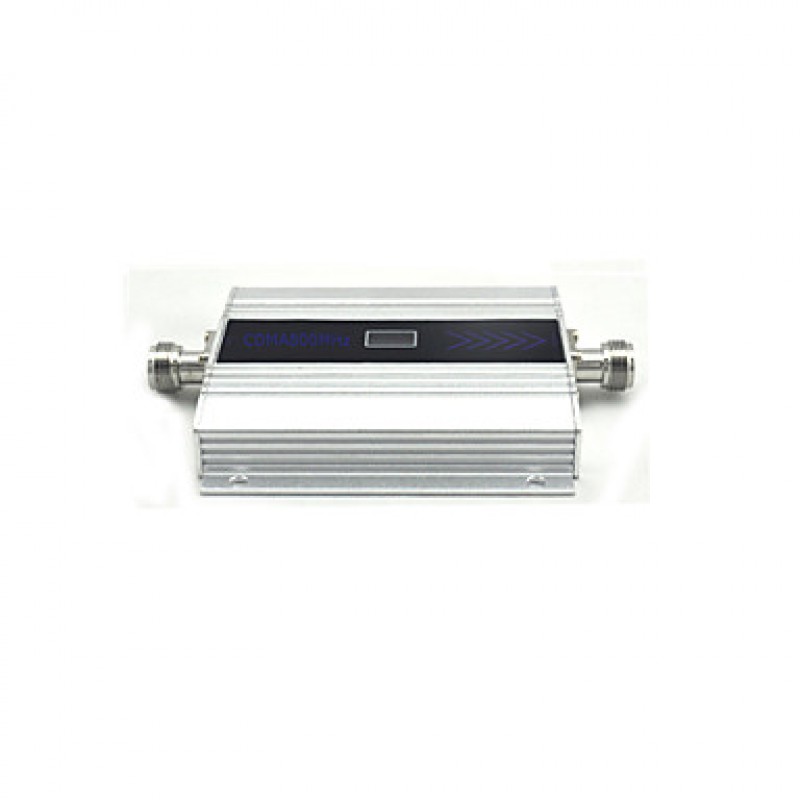

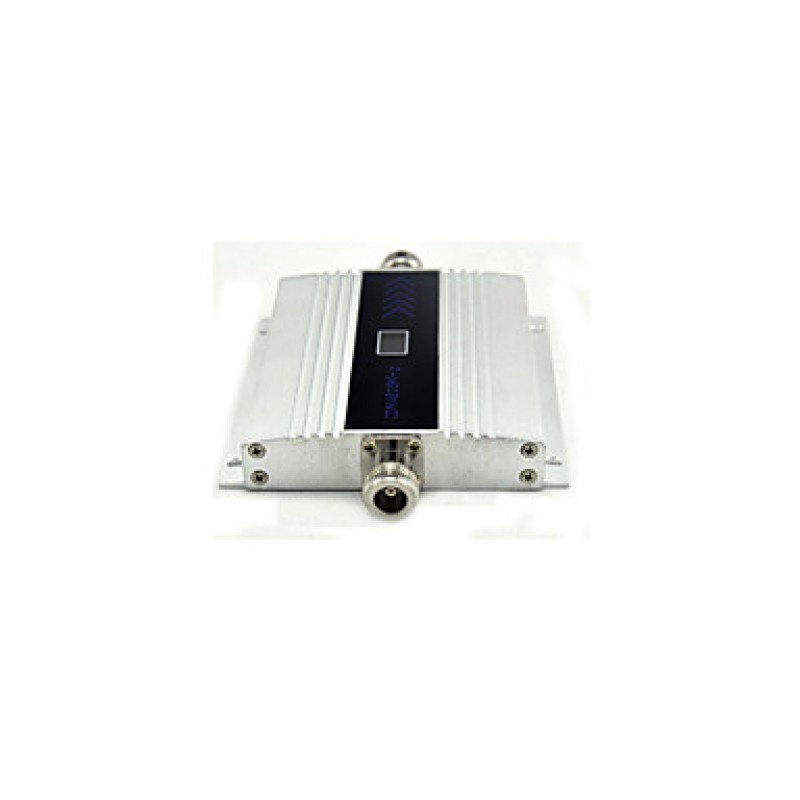

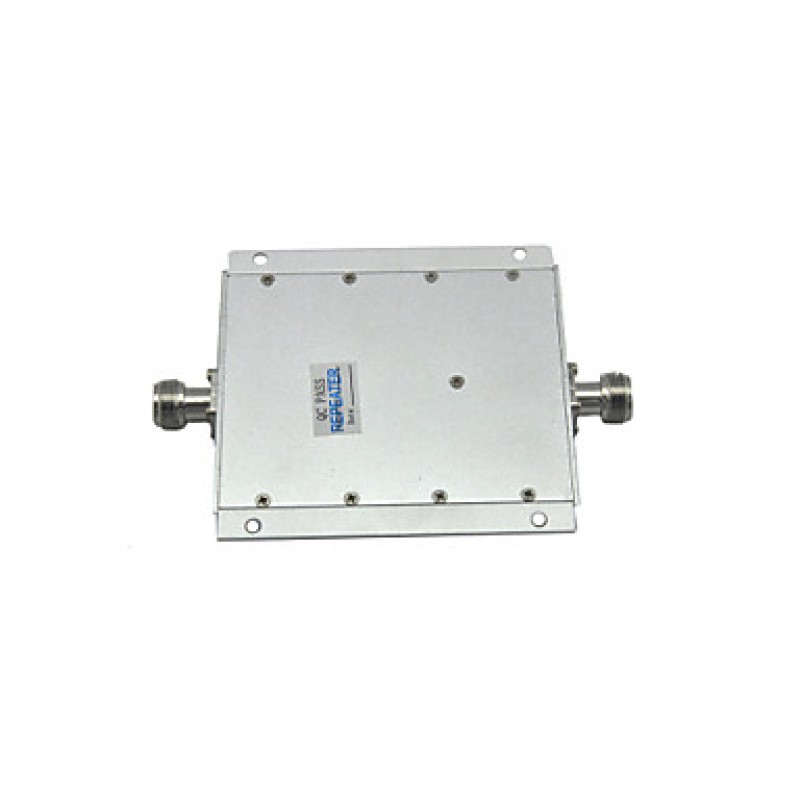

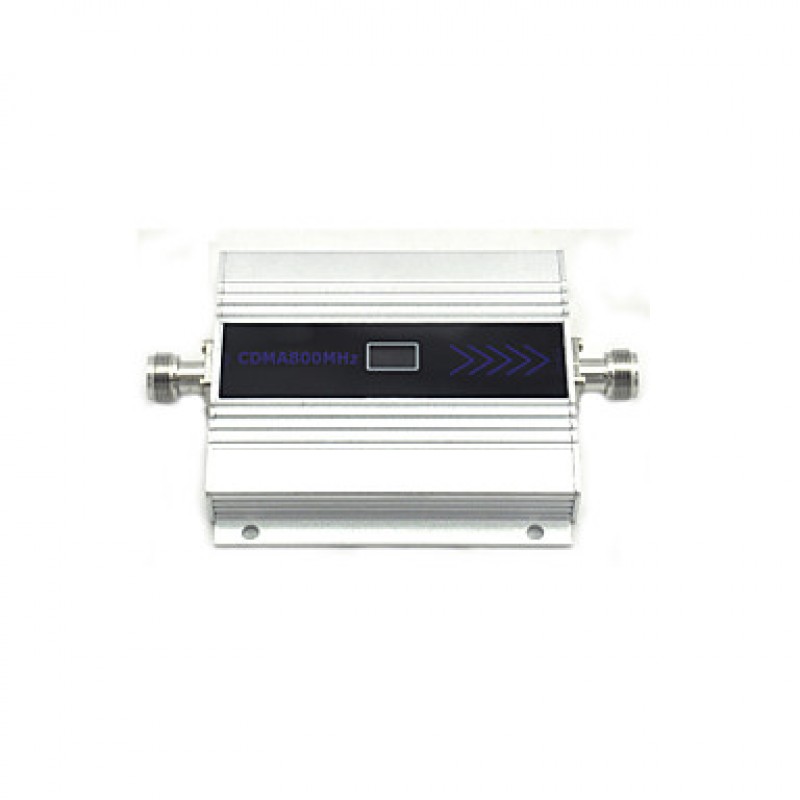

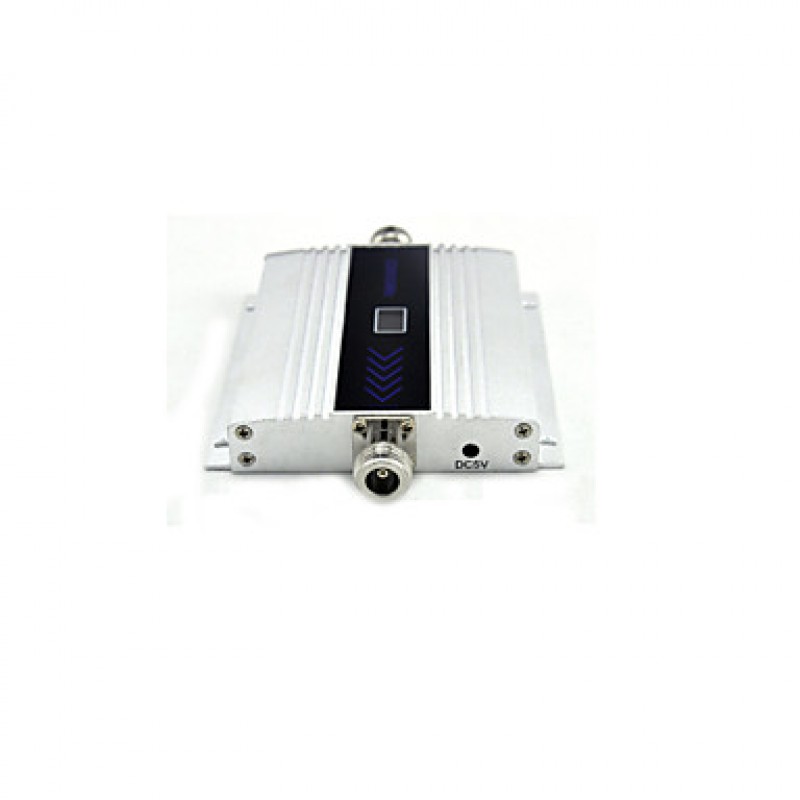

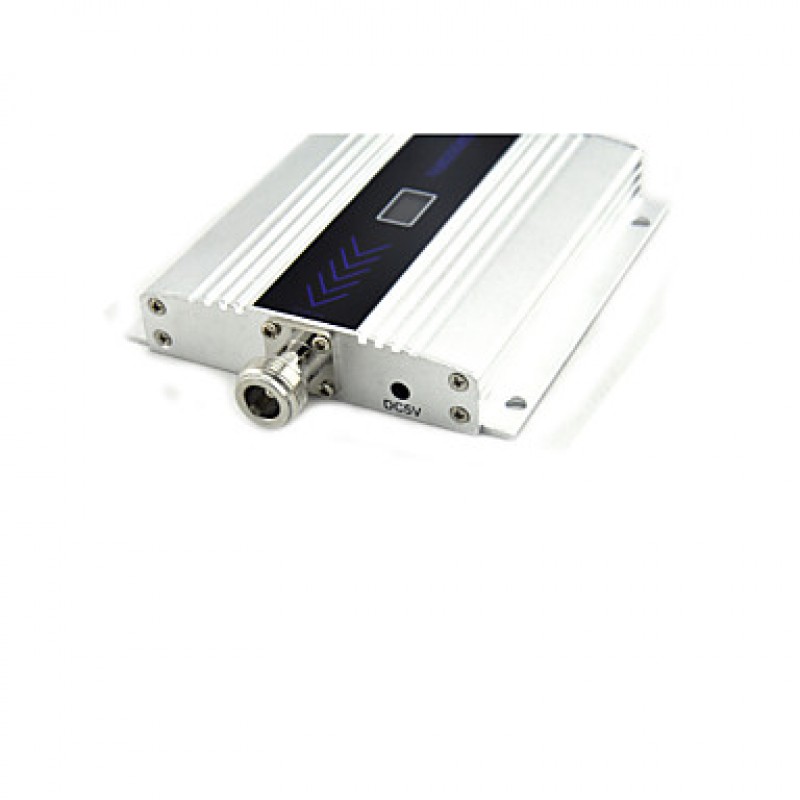

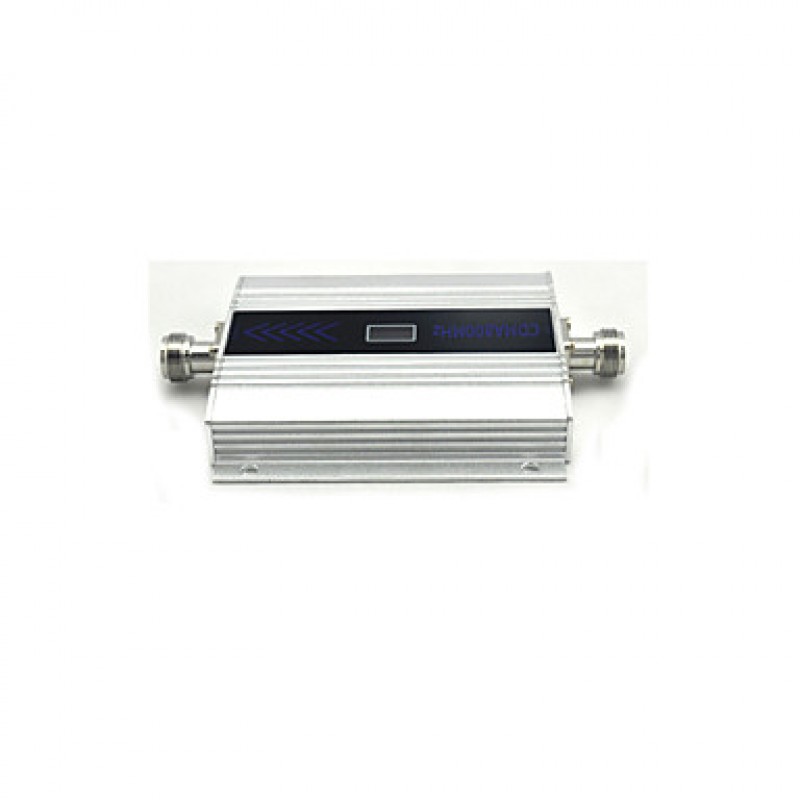

LCD Display Mini CDMA 800mhz Signal Booster Mobile Phone Signal Repeater with Yagi Antenna / Panel Antenna

rating
  • $67.99$122.43
  • Price in reward points:5000
  • Product Code:LCD Display Mini CDMA 800mhz Signal Booster Mobile Phone Signal
  • Availability:In Stock

Tags: Mobile Signal Boosters

Repeater
Frequency range (Mhz)UL824-849mhz DL869-894mhz,
Gain (dB)55Db ÷3db60Db ÷3db,
Max. Input Power Without Damage-70~-40dBm ,
Output Power (Bm)+17dBm/ ÷3DBM,
Noise figure (dB)4.5db,
Transmission delay (┢s)●0.5 ┢s,
RF ConnectorN -Female,
Coverage area (M)100,
I/O impedence (┯)50 ┯,
Environment Conditions-10oC-50oC,
Power SupplyDC 5V,
Dimensions (LxWxH) (CM)14x10x2,
Gross Weight (KG)0.245,

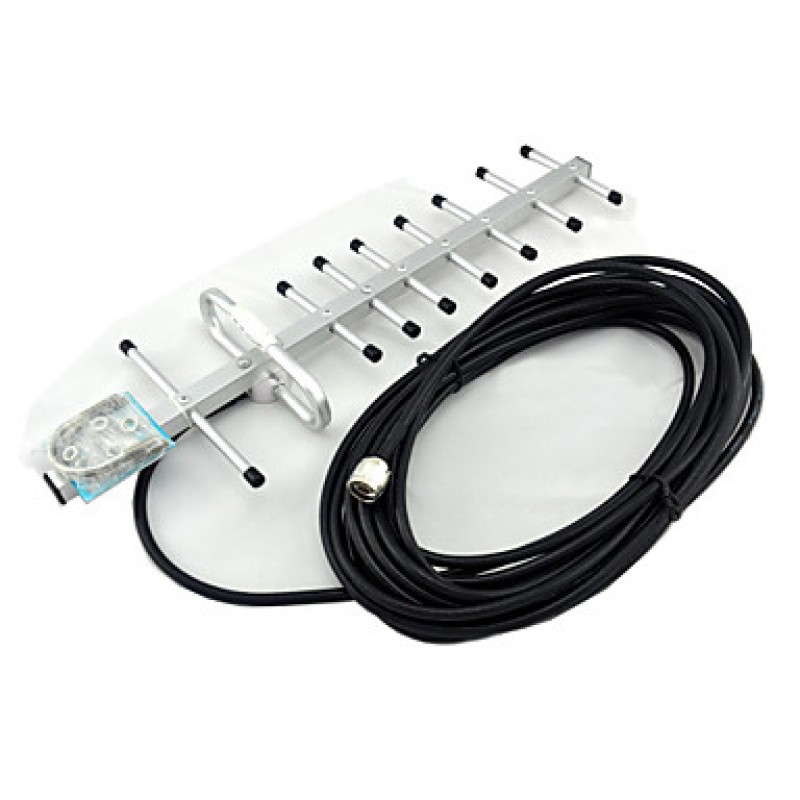

Outdoor Antenna
Usage typeYagi Antenna,
Frequency range (Mhz)800-900mhz,
Gain (dB)13dbi,
Impedance(┯)75,
Lightning protectionDC grounded,
Connector TypeN Female,
Operating Temperature-40 to +65▲C,
Dimensions (LxWxH) (CM)50x17x6,
Gross Weight (KG)0.81,
Indoor Antenna
Usage typePanel Antenna,
Frequency range (Mhz)800-900mhz,
Gain (dB)7/8 dBi,
Maximum input power (W)50,
Impedance(┯)50,
Lightning protectionDC grounded,
Connector TypeN Female,
Radome materialPlastic,
Operating Temperature-40 to +65▲C,
Dimensions (LxWxH) (CM)21 x 18 x 4.5,
Gross Weight (KG)0.45,
Cable
Impedance(┯)75ohm,
Gross Weight (KG)0.61,
General
What's in the box1 x Indoor Antenna,1 x Outdoor Antenna,1 x User Manual - English,1 x Mobile Signal Repeater,1* Power Supply,
